|Place of Origin:||Zhejiang, China (Mainland)|
|Colour outer sheath:||Yellow|
|Conductor material:||Cu, bare|
|Screen over stranding element:||Foil|
|Screen over stranding:||Braiding||Material outer sheath:||Polyolefin|
|AWG-size:||22||Number of cores:||8|
|Low smoke (acc. EN 61034-2)::||yes|

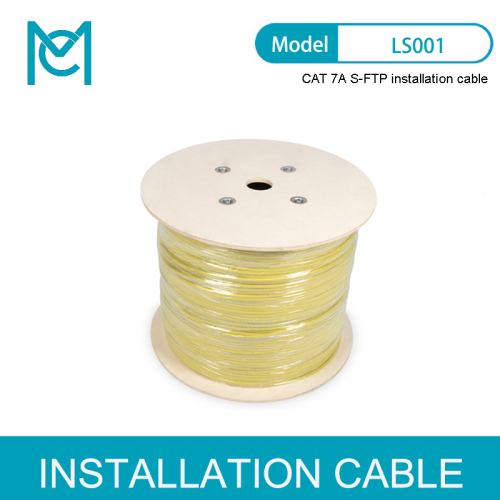

MC 10GBit Ethernet Cat.7A S/FTP Installation cable 1000 m Simplex Dca
CAT 7A S-FTP installation cable, Dca (EN 50575), AWG 22/1, simplex, color yellow
Future-oriented standards and high-end quality for your network.
Permanent link certified
PoE Power over Ethernet support
CPR class Dca
Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to .The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.
Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.60 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: Halogen-free (FRNC-C/LSZH-3)
Outer jacked diameter: 0.6 mm nominal
Color: Yellow (RAL 1016)
Length: 1000 m
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Temperature installation range: 0°C to +50°C
Overall diameter: 8.0 mm nominal
Flame retardancy: IEC 60332-3-24
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 700 Mj/km
Weight: 70 kg/km
Mean impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: "d" acc. to EN 50174-2
Nominal cross section conductor: 0.2827
Core insulation: Foam-Skin-PE
Core identification: Colour
Flame retardant: In accordance with EN 60332-3-24
Stranding element: Pairs
Colour outer sheath: Yellow
Category: 7A (IEC)
Conductor material: Cu, bare
Screen over stranding element: Foil
Screen over stranding: Braiding
Material outer sheath: Polyolefin
Conductor category: Class 1 = solid
Permitted cable outer temperature, in movement: -20 … 75
Permitted cable outer temperature, fixed: 0 … 50
Number of cores: 1
Outer diameter approx.: 7.3
Low smoke (acc. EN 61034-2): yes
NVP value: 79
Halogen free (acc. EN 60754-1/2): yes
|Packaging Unit Carton||1||67,50||53,00||53,00||43,50||122192,00|
|Packaging Unit Inside||1||67,50||53,00||53,00||43,50||122192,00|
|Packaging Unit Single||1||67,50||53,00||53,00||43,50||122192,00|
|Net single without Packaging||1||0,00||0,00||0,00||0,00||0,00|
1. CE and RoHS certification
2. ISO9001 passed
3. FDA certification
4. OEM and ODM are accepted
5. Factory price and good customer service
6. Patent product.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Quality Faulty
7. One Year Warranty
1. Can I print logo in the converter?
Yes , you can send us your logo by JPG or PDF file , we can free print logo.
2.Where can I use this product?
(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;
(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.
3.The box designer I can change it ?
Yes, you can send us your designe file , we will arrange production in china .
But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS
4. How can i get the sample ? free ?
We can send u the sample by air , but you need to pay the sample cost +shipping cost.
