19" Server Cabinet

Features:

Various sizes and parts are available according to different application demand.

Welded frame, demountable structure design, light duty but sturdy and flexible.

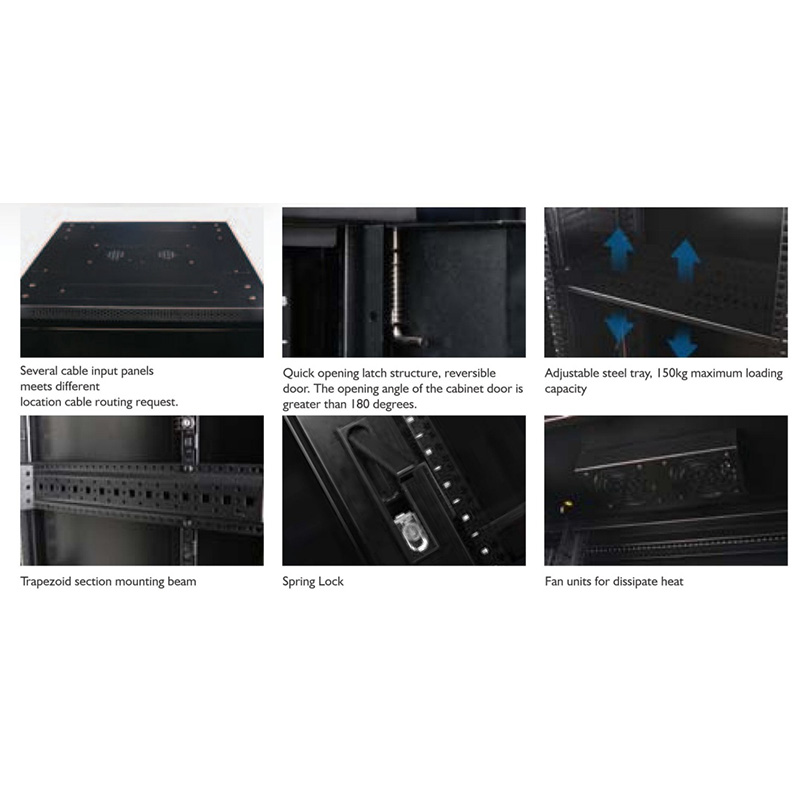

Closed-able cable routing at top and bottom panel,according to project request, customized big cable entrance at bottom is available on demand.

Embedded side panel, tool free in assembling and dismantling, lock is optional.

Front door and rear door can be interchanged quickly without tools, opening angle l80°, convenient for equipments installation and maintenance.

Rotary door handle, keys are universal to front and rear doors for all D1 series cabinets.

Providing several copper grounding stud.

Material: SPCC Cold rolled steel

Maximum static loading: 1200kgs

Capacity: 18U / 22U / 27U / 32U / 37U / 42U / 47U

Width: 600mm / 800mm

Depth: 600mm / 800mm / 1000mm / 1200mm

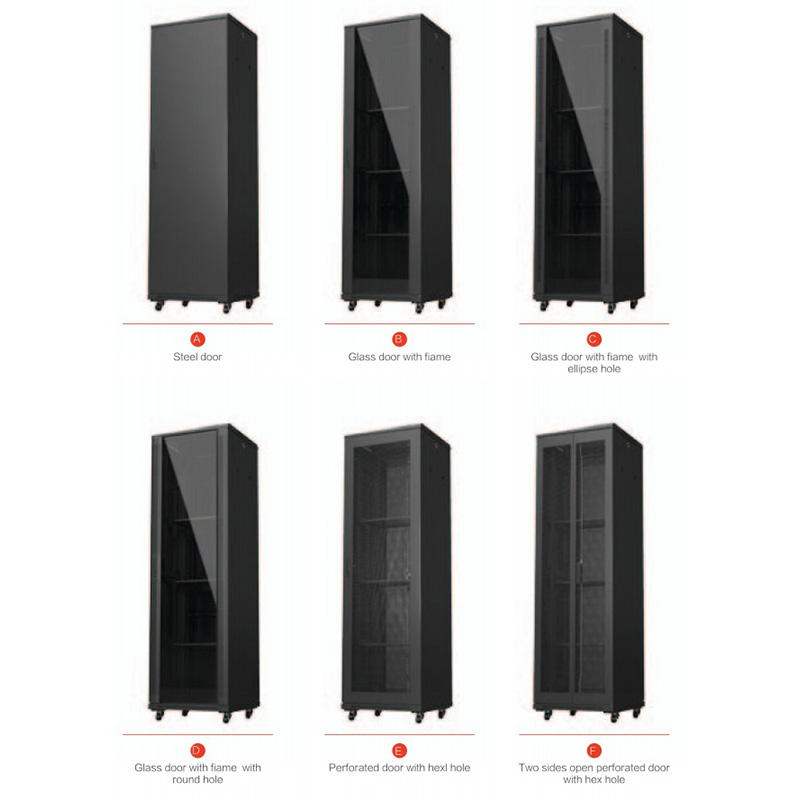

Front & rear door: Design optional

Adjustable feet: Optional

Lock: Optional

Plinth: Optional

Package: 1pc/Box

MOQ: 100 pcs
