|Payment Terms:||L/C, T/T|
|Place of Origin:||Zhejiang, China (Mainland)|
|Means of Transport:||Ocean|
|Colour outer sheath:||Orange|
|Category:||7||Conductor material:||Cu, bare|
|Screen over stranding element:||Foil||Screen over stranding:||Braiding|
|Material outer sheath:||Polyolefin||AWG-size:||23|
|Number of cores:||8||Low smoke (acc. EN 61034-2)::||yes|

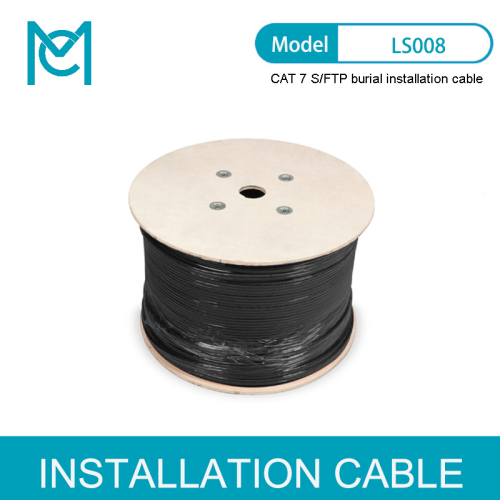

MC CAT 7 S/FTP Burial Installation Cable Simplex PE

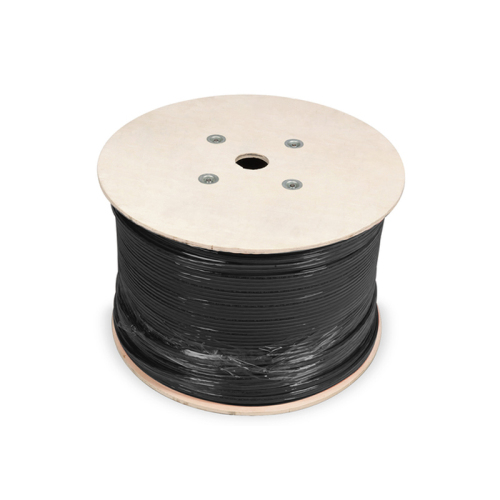

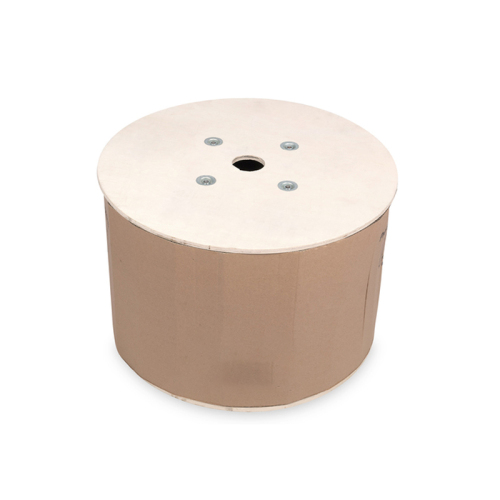

CAT 7 S-FTP outdoor installation cable, inner Eca (LSZH-1), AWG 23/1, 1000 m drum, simplex, color black & purple
Future-oriented standards and high-end quality for your network.
Permanent link certified
PoE Power over Ethernet support
PE outer jacket, CPR class Eca inner jacket
Cat.7 S/FTP burial installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The cable has a PE outer jacket and a halogen free inner jacket and is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for installations in dry or wet areas, outdoor or ground. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
Basic conductor: Solid AWG 23/1, bare annealed copper 0.57 mm nominal
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: PE
Outer jacket diameter: 0.50 mm nominal
Color: Black (RAL 9005)
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +60 °C
Operating temperature range: -50 °C up to +60 °C
Installation temperature range: 0 °C up to +60 °C
Overall diameter: 8.5 mm nom.
Weight: 66.5 kg/km
Mean impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
Caloric value: 650MJ/m
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Delay difference: 15 nS/100 m max.
Separating class: "d" acc. to EN 50174-2
Nominal cross section conductor: 0.2552
Core insulation: Foam-Skin-PE
Core identification: Colour
Flame retardant: In accordance with EN 60332-1-2
Stranding element: Pairs
Colour outer sheath: Other
Conductor material: Cu, bare
Screen over stranding element: Foil
Screen over stranding: Braiding
Material outer sheath: PE (polyethylene)
Conductor category: Class 1 = solid
Permitted cable outer temperature, in movement: -20 … 60
Permitted cable outer temperature, fixed: -50 … 60
Number of cores: 1
Outer diameter approx.: 8.5
Low smoke (acc. EN 61034-2): yes
NVP value: 79
Halogen free (acc. EN 60754-1/2): yes
|Packaging Unit Carton||1||66,00||60,00||60,00||33,00||118800,00|
|Packaging Unit Inside||1||66,00||60,00||60,00||33,00||118800,00|
|Packaging Unit Single||1||66,00||60,00||60,00||33,00||118800,00|
|Net single without Packaging||1||0,00||0,00||0,00||0,00||0,00|
1. CE and RoHS certification
2. ISO9001 passed
3. FDA certification
4. OEM and ODM are accepted
5. Factory price and good customer service
6. Patent product.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Quality Faulty
7. One Year Warranty
1. Can I print logo in the converter?
Yes , you can send us your logo by JPG or PDF file , we can free print logo.
2.Where can I use this product?
(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;
(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.
3.The box designer I can change it ?
Yes, you can send us your designe file , we will arrange production in china .
But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS
4. How can i get the sample ? free ?
We can send u the sample by air , but you need to pay the sample cost +shipping cost.
Category: Twisted Pair Installation Cable
