CAT.7 S/FTP installation cable LSZH Admin Edit

Model: LS003
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Stranding element: Pairs
Colour outer sheath: Orange
Category: 7 Conductor material: Cu, bare
Screen over stranding element: Foil Screen over stranding: Braiding
Material outer sheath: Polyolefin AWG-size: 23
Number of cores: 8 Low smoke (acc. EN 61034-2):: yes

MC CAT.7 S/FTP installation cable LSZH


Description

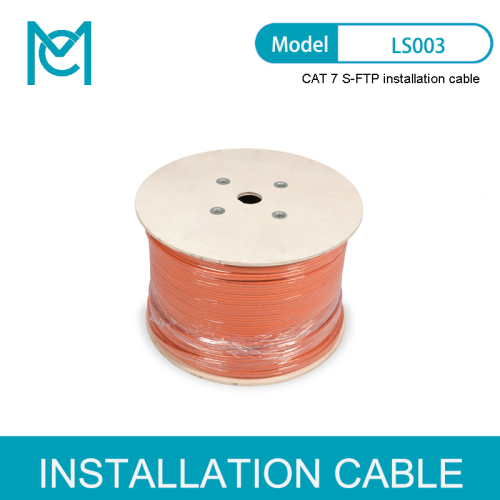

CAT 7 S-FTP installation cable,  AWG 23/1, 1000 m drum, simplex, color orange

Future-oriented standards and high-end quality for your network.


  • 10GBit Ethernet

  • 1200 MHz transmission frequency

  • Permanent link certified

  • PoE Power over Ethernet support

  • CPR class Dca


  • Cat.7 S/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

    Technical Details


  • Physical properties:

  • Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal

  • Insulation: SFS-PE (Foam-Skin Polyethylene)

  • Total number of insulated conductors: 8, twisted in 4 pairs

  • Color code: blue-white, orange-white, green-white, brown-white

  • Individual pair shielding: Aluminum foil, providing 100 % coverage

  • Overall shielding: Copper wire braid

  • Outer jacket: Halogen-free (FRNC-C/LSZH-3)

  • Outer jacket diameter: 0.7 mm nominal

  • Color: Orange (RAL 2000)

  • Mechanical properties:

  • Tensile loading: 150N max.

  • Dynamic bending radius: 8x AD mm min.

  • Static bending radius: 4x AD mm min.

  • Shipping- and storage temperature range: -20 °C up to +75 °C

  • Operating temperature range: -20 °C up to +60 °C

  • Installation temperature range: 0 °C up to +50 °C

  • Overall diameter: 7.3 mm nominal

  • Flame retardancy: IEC 60332-3-24

  • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034

  • Fire load: 620 Mj/km

  • Weight: 50 kg/km

  • Electrical properties:

  • Mean impedance: 100±5Ohm at 1MHz - 600MHz

  • Capacitance: 40 pF/m nominal @ 1 KHz

  • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz

  • Insulation resistance: 5 GOhm x km min.

  • DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)

  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)

  • Voltage resistance: 72 Vdc max.

  • Coupling attenuation: 80 dB

  • Signal propagation delay: 450 nS/100 m max.

  • Propagation delay: 15 nS/100 m max.

  • Separating class: "d" acc. to EN 50174-2

  • NVP: 79%

  • Nominal cross section conductor: 0.2552

  • Core insulation: Foam-Skin-PE

  • Core identification: Colour

  • Flame retardant: In accordance with EN 60332-3-24

  • Stranding element: Pairs

  • Colour outer sheath: Orange

  • Category: 7

  • Conductor material: Cu, bare

  • Screen over stranding element: Foil

  • Screen over stranding: Braiding

  • Material outer sheath: Polyolefin

  • Conductor category: Class 1 = solid

  • Permitted cable outer temperature, in movement: -20 … 75

  • Permitted cable outer temperature, fixed: 0 … 50

  • AWG-size: 23

  • Number of cores: 1

  • Outer diameter approx.: 7.3

  • Low smoke (acc. EN 61034-2): yes

  • NVP value: 79



Logistics



Number

(pcs)

Weight

(kg)

Depth

(cm)

Width

(cm)

Height

(cm)

cm³
Packaging Unit Carton149,5050,0050,0050,00125000,00
Packaging Unit Inside149,5050,0050,0050,00125000,00
Packaging Unit Single149,5050,0050,0050,00125000,00
Net single without Packaging10,000,000,000,000,00


Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty


FAQ

1. Can I print logo in the converter?

Yes , you can send us your logo by JPG or PDF file , we can free print logo.


2.Where can I use this product?

(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;

(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.


3.The box designer I can change it ?

Yes, you can send us your designe file , we will arrange production in china .

But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS


4. How can i get the sample ? free ?

We can send u the sample by air , but you need to pay the sample cost +shipping cost.
