Cat.6A U/FTP installation cable LSZH Admin Edit

Model: LU009
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Stranding element: Pairs
Colour outer sheath: Blue
Category: 7 Conductor material: Cu, bare
Screen over stranding element: Foil Screen over stranding: Braiding
Material outer sheath: Polyolefin AWG-size: 23
Number of cores: 8 Low smoke (acc. EN 61034-2):: yes

MC Cat.6A U/FTP installation cable LSZH


  • Description

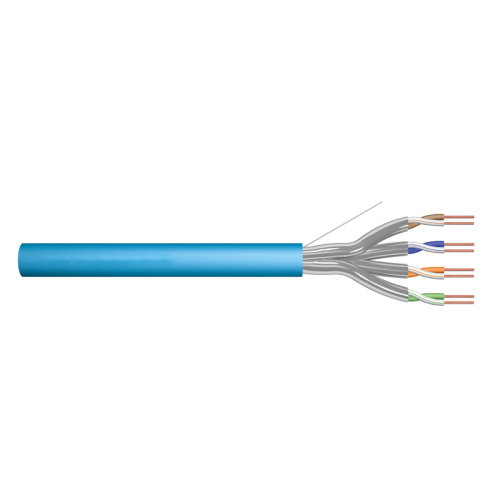

    CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 500 m drum, simplex, color blue

    Future-oriented standards and high-end quality for your network.


  • 10GBit Ethernet

  • 500 MHz transmission frequency

  • PoE Power over Ethernet support

  • CPR class Eca


  • Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

    Technical Details


  • Physical properties:

  • Basic conductor: Solid AWG 23/1, bare annealed copper 0.57 mm nominal

  • Total number of insulated conductors: 8, twisted in 4 pairs

  • Color code: blue-white, orange-white, green-white, brown-white

  • Individual pair shielding: Aluminum foil, providing 100 % coverage

  • Outer jacket: Halogen-free (FRNC-B/LSZH-1)

  • Outer jacket diameter: 0.50 mm nominal

  • Color: Light blue (RAL 5012)

  • Mechanical properties:

  • Tensile loading: 150N max.

  • Dynamic bending radius: 8x AD mm min.

  • Static bending radius: 4x AD mm min.

  • Shipping- and storage temperature range: -20 °C up to +60 °C

  • Operating temperature range: -20 °C up to +75 °C

  • Installation temperature range: 0 °C up to +50 °C

  • Overall diameter: 7.0 mm nominal

  • Flame retardancy: IEC 60332-1

  • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034

  • Fire load: 650 Mj/km

  • Weight: 50 kg/km

  • Electrical properties:

  • Mean impedance: 100±5Ohm at 1MHz - 600MHz

  • Capacitance: 40 pF/m nominal @ 1 KHz

  • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz

  • Insulation resistance: 5 GOhm x km min.

  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)

  • Voltage resistance: 72 Vdc max.

  • Coupling attenuation: 65 dB

  • Signal propagation delay: 450 nS/100 m max.

  • Propagation delay: 15 nS/100 m max.

  • Separating class: "c" acc. to EN 50174-2

  • NVP: 70%

  • NVP: 70%

  • Nominal cross section conductor: 0.2582

  • Core insulation: PE (polyethylene)

  • Core identification: Colour

  • Flame retardant: In accordance with EN 60332-1-2

  • Stranding element: Pairs

  • Colour outer sheath: Blue

  • Category: 6A (IEC)

  • Conductor material: Cu, bare

  • Screen over stranding element: Foil

  • Screen over stranding: None

  • Material outer sheath: Polyolefin

  • Conductor category: Class 1 = solid

  • Permitted cable outer temperature, in movement: -20 … 60

  • Permitted cable outer temperature, fixed: -20 … 75

  • AWG-size: 23

  • Number of cores: 1

  • Outer diameter approx.: 7.2

  • Low smoke (acc. EN 61034-2): yes

  • NVP value: 70

  • Halogen free (acc. EN 60754-1/2): yes


  • Logistics



    Number
    PCS
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton128,0040,0030,0030,0036000,00
    Packaging Unit Inside128,0040,0030,0030,0036000,00
    Packaging Unit Single128,0040,0030,0030,0036000,00
    Net single without Packaging10,000,000,000,000,00
