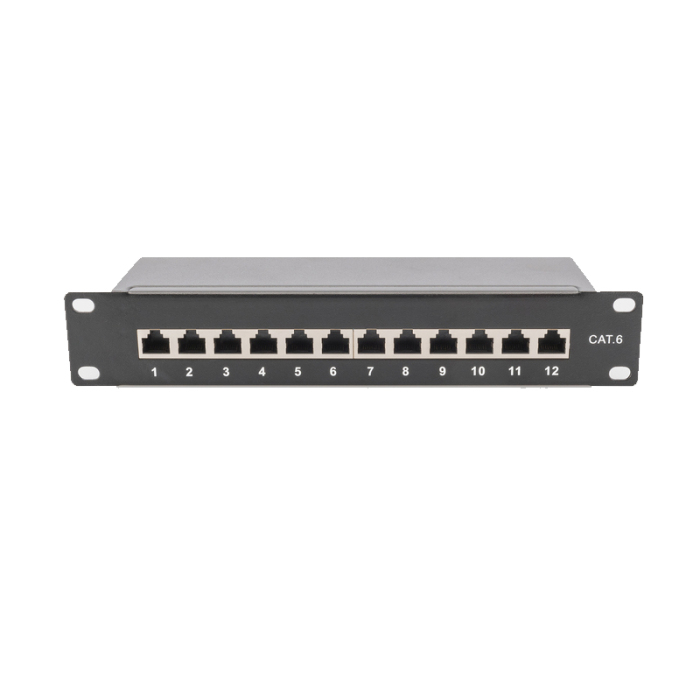

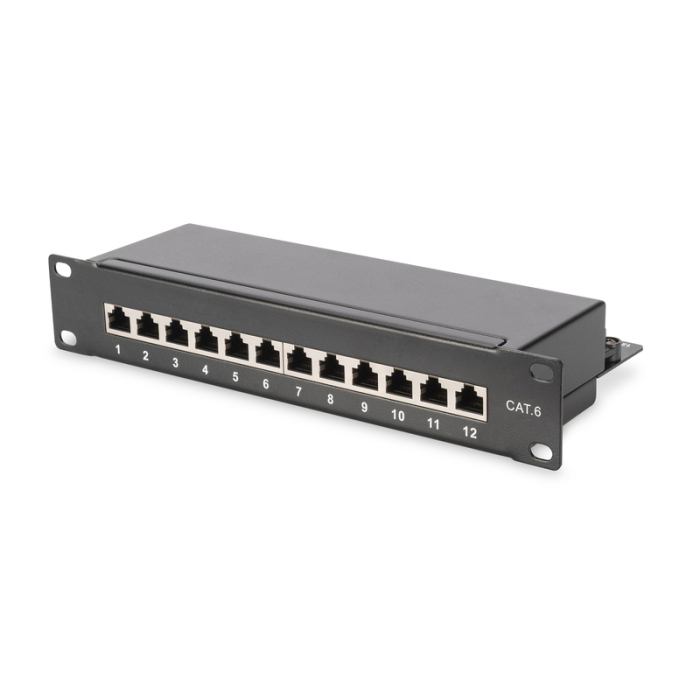

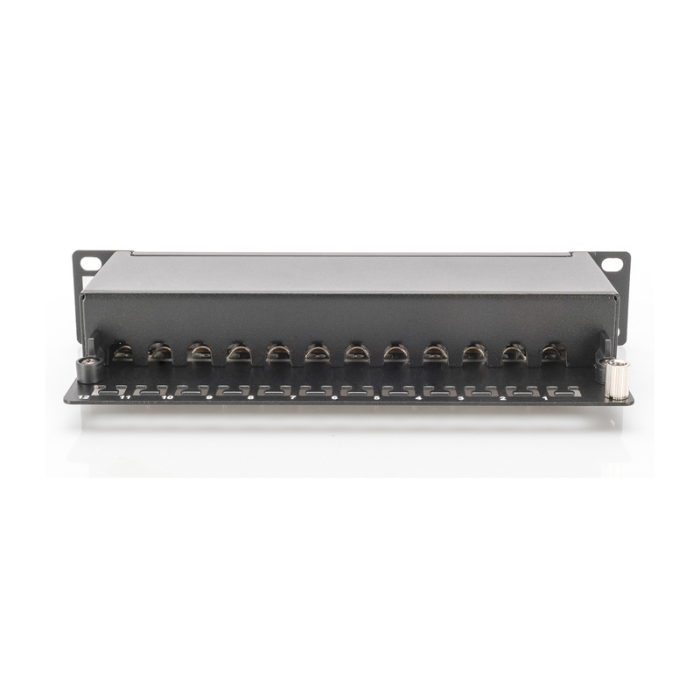

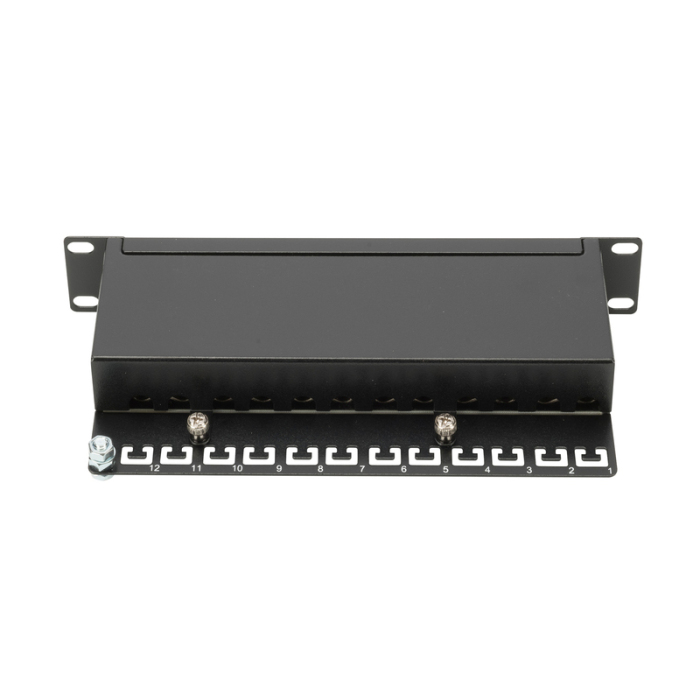

MC CAT 6 Class E Patch Panel Shielded 12-port RJ45 8P8C

• Description

   CAT 6, Class E Patch Panel, shielded 12-port RJ45, 8P8C, LSA, 1U, 254 mm(10")Rack Mount color black RAL 9005

  Future-oriented standards and high-end quality for your network.




• Easy wire installation possible due to color coded LSA strips

• Shielding provides optimized performances

• Compact 10" design with 8x RJ45 ports




The CAT 6 Patch Panels for 254 mm (10") rack mount  are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

Technical Details




• Transmission properties: Category 6

• Area of application: Up to 250 MHz, 1GBase-T

• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

• General properties:

• Suitable for 254 mm (10") cabinet mounting

• RJ45 female, 8P8C

• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

• Cable fixing with smart cable ties

• Central ground connection

• 360° shield coverage

• Mechanical properties:

• Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110

• RJ45 female material: ABS UL 94V-0

• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact

• RJ45 shielding: Tinned bronze

• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

• Ground wire: Not included

• Conductor plate: FR4, UL 94V-0

• Physical properties:

• Insertion force: 30N max. (IEC 60603-7-5)

• Retention strength: 7.7 kg between jack and plug

• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

• IDC wire size: 22 – 26 AWG solid and stranded conductor

• Insulation resistance: > 500 MOhm

• Contact resistance: < 20 MilliOhm

• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

• Color: Black (RAL 9005)

• Mounting method: 254 mm (10 inch) mounting

• Colour: Black

• Width: 254

• Height: 44

• Depth: 109

• RAL-number: 9005

• Connection type: LSA

• Screened: yes

• Suitable for number of connectors: 12

• Category: 6

• Type of connector: RJ45 8(8)

• Number of height units: 1

• Number of buses/couplings: 12




• Logistics




  	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
  Packaging Unit Carton	10	10,30	58,40	30,20	20,00	35273,60
  Packaging Unit Inside	1	1,03	6,00	28,00	17,50	2940,00
  Packaging Unit Single	1	1,03	6,00	28,00	17,50	2940,00
  Net single without Packaging	1	0,79	11,00	25,40	4,50	1257,30
