|Place of Origin:||Zhejiang, China (Mainland)|
|Housing material:||1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110|
|RJ45 female material:||ABS UL 94V-0|
|RJ45 female contact:||Tinned phosphor bronze, 0.5 μ gold-plated contact|
|RJ45 shielding:||Tinned bronze|
|LSA termination clamp:||Krone LSA+, UL 94V-2, zinc plated phosphor bronze|
|Ground wire:||Not included||Conductor plate:||FR4, UL 94V-0|
|Insertion force:||30N max. (IEC 60603-7-5)||Retention strength:||7.7 kg between jack and plug|

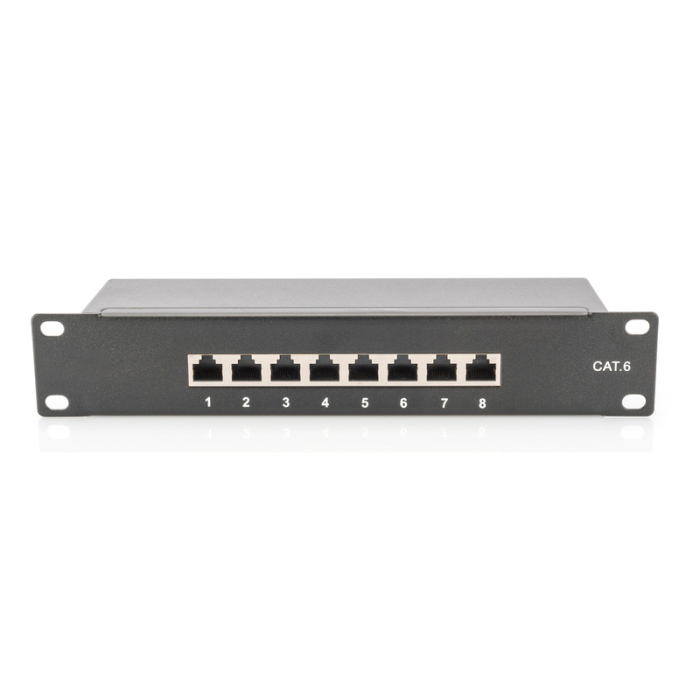

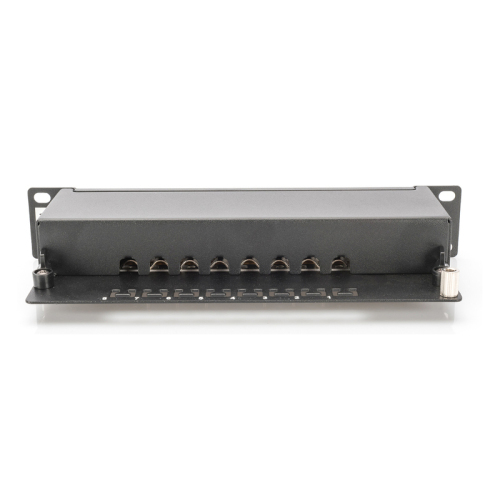

MC CAT 6 Class E Patch Panel Shielded 8-port RJ45 8P8C
CAT 6, Class E patch panel, shielded 8-port RJ45, 8P8C, LSA, 1U, 254 mm (10")Rack Mount color black RAL 9005
Future-oriented standards and high-end quality for your network.
Easy wire installation possible due to color coded LSA strips
Shielding provides optimized performances
Compact 10" design with 8x RJ45 ports
The CAT 6 Patch Panels for 254 mm (10") rack mount are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.
Transmission properties: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
Suitable for 254 mm (10") cabinet mounting
RJ45 female, 8P8C

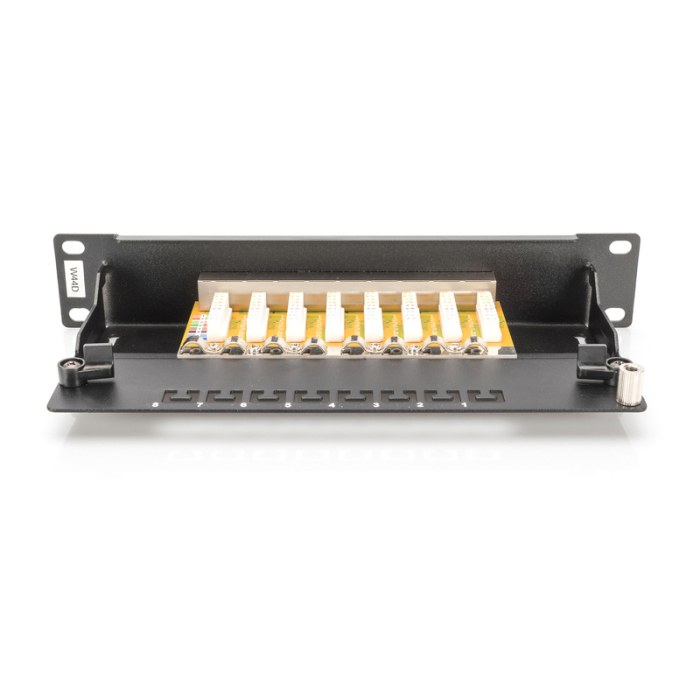

Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Integrated dust cover
Central ground connection
360° shield coverage
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Color: Black (RAL 9005)
Color: black, RAL 9005
Category: CAT 6
|Packaging Unit Carton||10||15,00||40,00||35,00||25,00||35000,00|
|Packaging Unit Inside||1||1,50||28,00||18,00||6,00||3024,00|
|Packaging Unit Single||1||1,50||28,00||18,00||6,00||3024,00|
|Net single without Packaging||1||0,00||25,00||11,00||4,00||1100,00|
1. CE and RoHS certification
2. ISO9001 passed
3. FDA certification
4. OEM and ODM are accepted
5. Factory price and good customer service
6. Patent product.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Quality Faulty
7. One Year Warranty
1. Can I print logo in the converter?
Yes , you can send us your logo by JPG or PDF file , we can free print logo.
2.Where can I use this product?
(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;
(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.
3.The box designer I can change it ?
Yes, you can send us your designe file , we will arrange production in china .
But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS
4. How can i get the sample ? free ?
We can send u the sample by air , but you need to pay the sample cost +shipping cost.
