MC CAT 6 Class E Patch Panel Unshielded 24-port RJ45 8P8C Admin Edit

Model: PN008
Place of Origin: Zhejiang, China (Mainland)
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug
Category: CAT 6

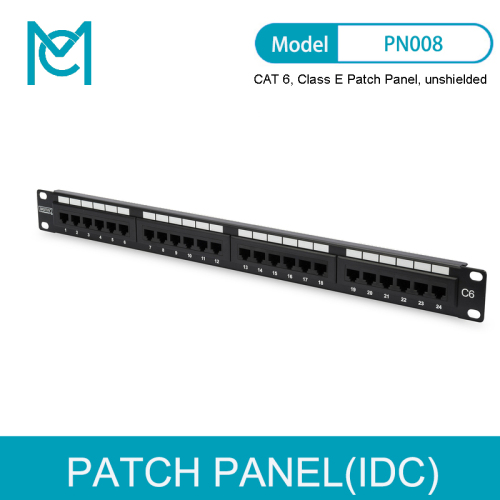

MC CAT 6 Class E Patch Panel Unshielded 24-port RJ45 8P8C


  • Description

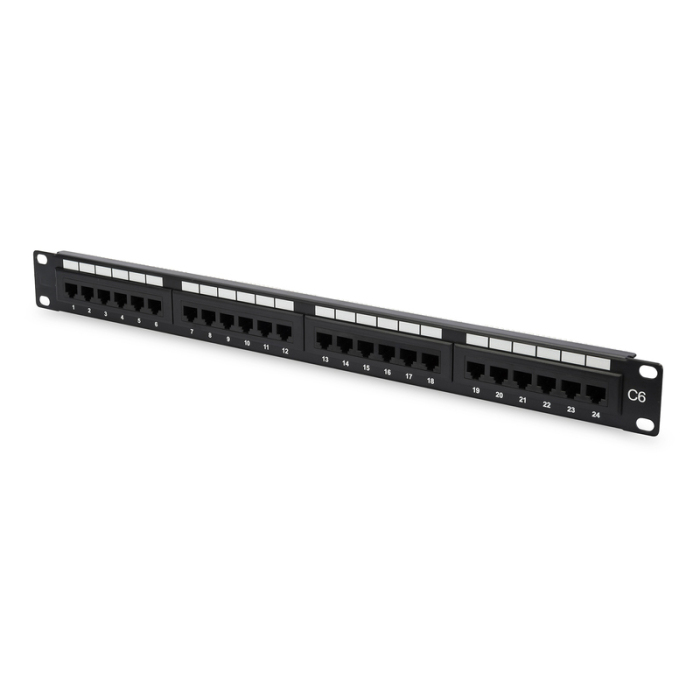

    CAT 6, Class E Patch Panel, unshielded 24-port RJ45, 8P8C, LSA, 1U, rack mount, color black RAL 9005

    Future-oriented standards and high-end quality for your network.

    The unshielded CAT 6 Patch Panel is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units). It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting.

    Technical Details


  • Transmission properties: Category 6

  • Area of application: Up to 250 MHz, 1GBase-T, PoE

  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

  • General properties:

  • Suitable for 483 mm (19") cabinet mounting

  • RJ45 female, 8P8C

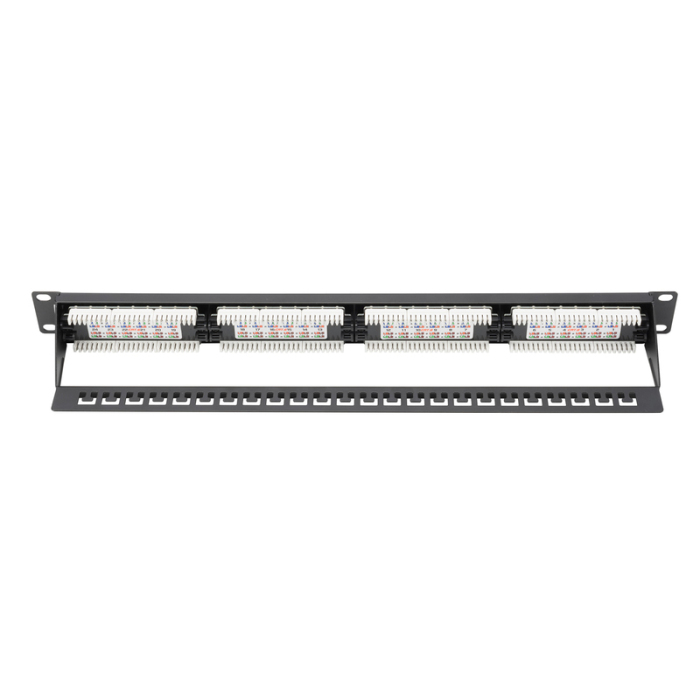

  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

  • Cable fixing with smart cable ties

  • Mechanical properties:

  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110

  • RJ45 female material: ABS UL 94V-0

  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact

  • RJ45 shielding: Tinned bronze

  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

  • Ground wire: Not included

  • Conductor plate: FR4, UL 94V-0

  • Physical properties:

  • Insertion force: 30N max. (IEC 60603-7-5)

  • Retention strength: 7.7 kg between jack and plug

  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

  • IDC wire size: 22 – 26 AWG solid and stranded conductor

  • Insulation resistance: > 500 MOhm

  • Contact resistance: < 20 MilliOhm

  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

  • Contact resistance: < 20 MilliOhm

  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

  • Mounting method: 482.6 mm (19 inch) mounting

  • Colour: Black

  • Width: 482

  • Height: 44

  • Depth: 109

  • RAL-number: 9005

  • Connection type: LSA

  • Screened: no

  • Suitable for number of connectors: 24

  • Category: 6

  • Type of connector: RJ45 8(8)

  • Number of height units: 1

  • Number of buses/couplings: 24


  • Logistics



    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton106,4652,0023,5031,0037882,00
    Packaging Unit Inside10,658,0056,0010,004480,00
    Packaging Unit Single10,658,0056,0010,004480,00
    Net single without Packaging10,513,0048,504,50654,75

Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty


FAQ

1. Can I print logo in the converter?

Yes , you can send us your logo by JPG or PDF file , we can free print logo.


2.Where can I use this product?

(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;

(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.


3.The box designer I can change it ?

Yes, you can send us your designe file , we will arrange production in china .

But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS


4. How can i get the sample ? free ?

We can send u the sample by air , but you need to pay the sample cost +shipping cost.
