MC CAT 6 Patch Panel Shielded 24-port RJ45 with Shutter 8P8C LSA Admin Edit

Place of Origin: Zhejiang, China (Mainland)
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0 Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug Category: CAT 6

MC CAT 6 Patch Panel Shielded 24-port RJ45 with Shutter 8P8C LSA


  • Description

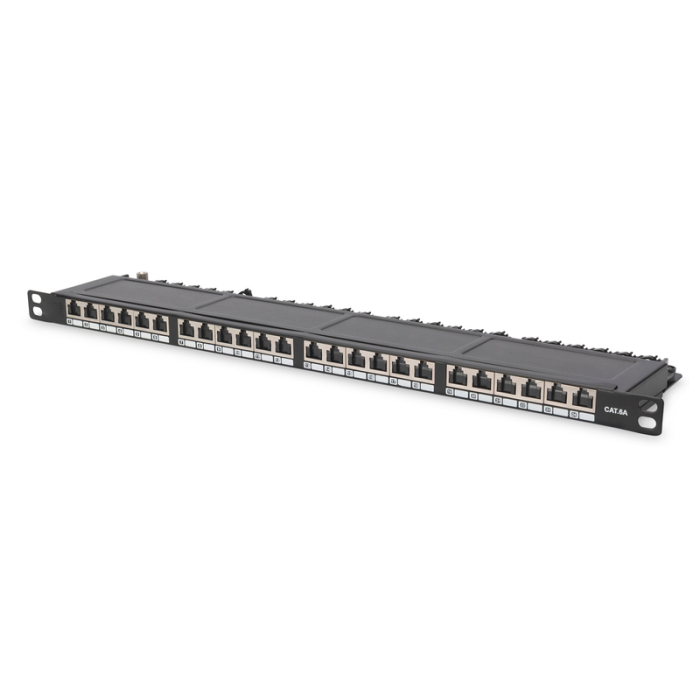

    CAT 6 Patch Panel, shielded,24-port RJ45 with shutter, 8P8C, LSA, 0.5U, 19" rack mount, color black RAL 9005

    Save a lot of space (only 0.5U) - With shutters for dust protection - Best performance and link quality for your network


  • 0.5U

  • CAT6


  • The 24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed.

    Technical Details


  • Transmission properties: Category 6

  • Area of application: Up to 250 MHz, 1GBase-T

  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

  • General properties:

  • Suitable for 483 mm (19") cabinet mounting

  • RJ45 female, 8P8C

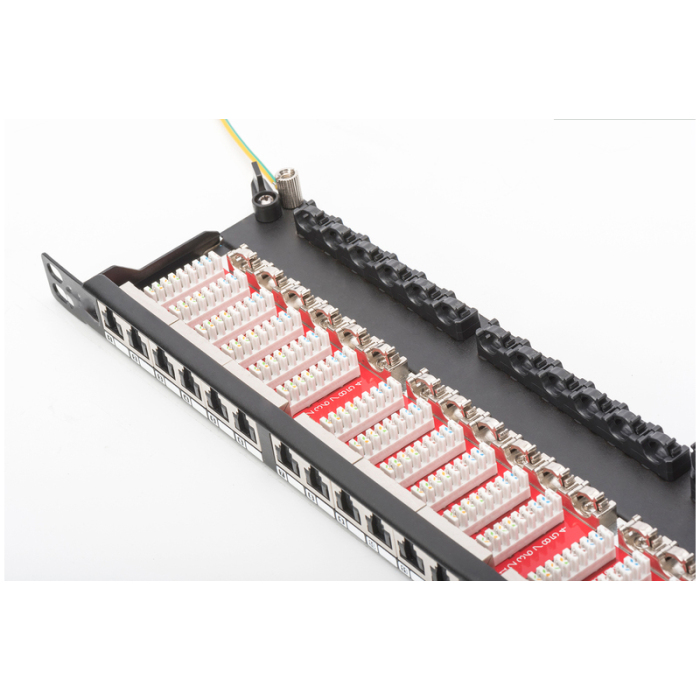

  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

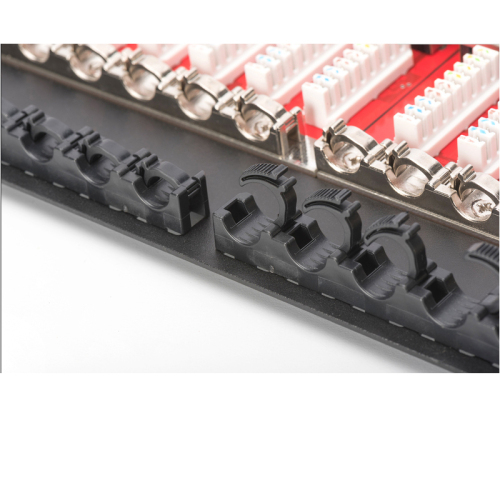

  • Cable fixing with smart cable ties

  • Central ground connection

  • 360° shield coverage

  • Integrated dust cover

  • Mechanical properties:

  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110

  • RJ45 female material: ABS UL 94V-0

  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact

  • RJ45 shielding: Tinned bronze

  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

  • Ground wire: Not included

  • Conductor plate: FR4, UL 94V-0

  • Physical properties:

  • Insertion force: 30N max. (IEC 60603-7-5)

  • Retention strength: 7.7 kg between jack and plug

  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

  • IDC wire size: 22 – 26 AWG solid and stranded conductor

  • Insulation resistance: > 500 MOhm

  • Contact resistance: < 20 MilliOhm

  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

  • Color: Black (RAL 9005)

  • Color: black, RAL 9005

  • Category: CAT 6

  • Ports: 24


  • Logistics



    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton1012,8653,5025,5025,0034106,20
    Packaging Unit Inside11,294,0053,0012,002544,00
    Packaging Unit Single11,294,0053,0012,002544,00
    Net single without Packaging10,000,000,000,000,00

Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty


FAQ

1. Can I print logo in the converter?

Yes , you can send us your logo by JPG or PDF file , we can free print logo.


2.Where can I use this product?

(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;

(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.


3.The box designer I can change it ?

Yes, you can send us your designe file , we will arrange production in china .

But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS


4. How can i get the sample ? free ?

We can send u the sample by air , but you need to pay the sample cost +shipping cost.
