|Place of Origin:||Zhejiang, China (Mainland)|
|Housing material:||1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110|
|RJ45 female material:||ABS UL 94V-0|
|RJ45 female contact:||Tinned phosphor bronze, 0.5 μ gold-plated contact|
|RJ45 shielding:||Tinned bronze|
|LSA termination clamp:||Krone LSA+, UL 94V-2, zinc plated phosphor bronze|
|Ground wire:||Not included|
|Conductor plate:||FR4, UL 94V-0||Insertion force:||30N max. (IEC 60603-7-5)|
|Retention strength:||7.7 kg between jack and plug||Category:||CAT 6A|

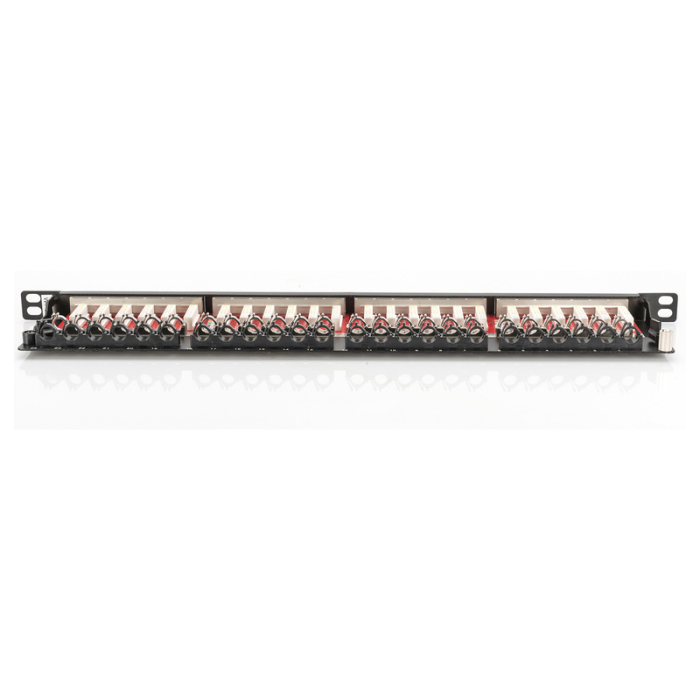

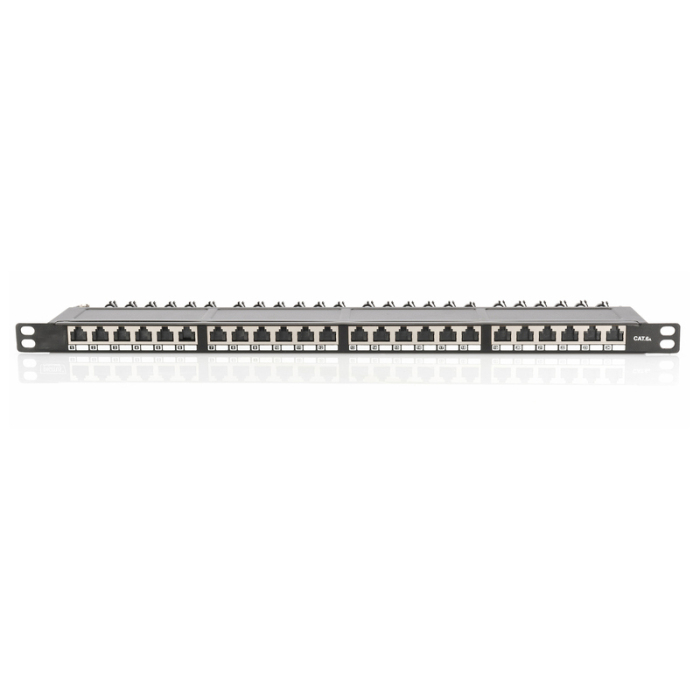

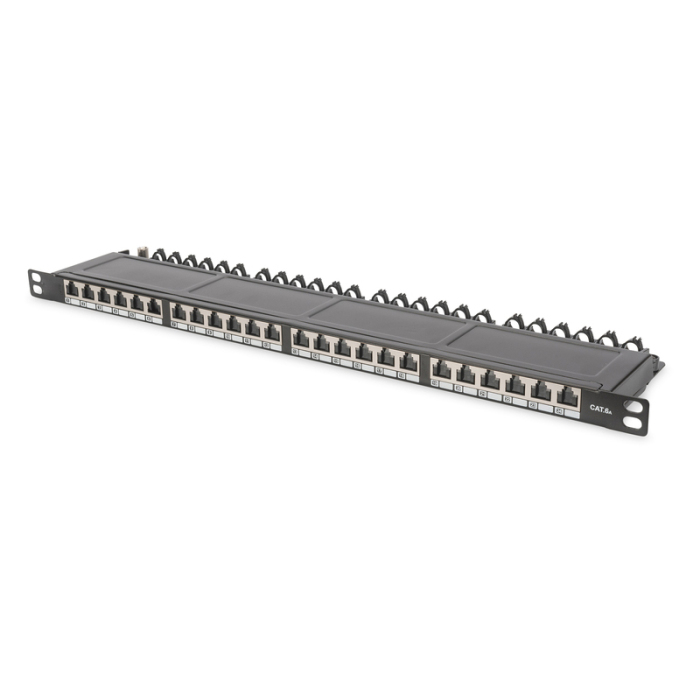

MC CAT 6A Class EA High Density Patch Panel Shielded
CAT 6A Class EA patch panel, shielded 0.5U, 24-port RJ45, incl. dust cover, 8P8C, color black RAL 9005
Save a lot of space (only 0.5U) - With shutters for dust protection - Best performance and link quality for your network
The24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed.
Transmission properties: Category 6A, Class EA
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Central ground connection
360° shield coverage
Integrated dust cover
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Color: black, RAL 9005
Category: CAT 6A
|Packaging Unit Carton||6||9,00||54,50||30,00||12,00||19620,00|
|Packaging Unit Inside||1||1,50||53,00||14,00||3,50||2597,00|
|Packaging Unit Single||1||1,50||53,00||14,00||3,50||2597,00|
|Net single without Packaging||1||0,00||0,00||0,00||0,00||0,00|
1. CE and RoHS certification
2. ISO9001 passed
3. FDA certification
4. OEM and ODM are accepted
5. Factory price and good customer service
6. Patent product.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Quality Faulty
7. One Year Warranty
1. Can I print logo in the converter?
Yes , you can send us your logo by JPG or PDF file , we can free print logo.
2.Where can I use this product?
(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;
(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.
3.The box designer I can change it ?
Yes, you can send us your designe file , we will arrange production in china .
But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS
4. How can i get the sample ? free ?
We can send u the sample by air , but you need to pay the sample cost +shipping cost.
