MC CAT 6A Class EA Network Outlet Design Compatible Shielded Admin Edit

Model: NTL003
Place of Origin: Zhejiang, China (Mainland)
Application: Residential / General-Purpose
Type: Wall Socket
Grounding: Standard Grounding
Connection type: LSA
Outlet direction: Inclined
Category: 6A (IEC) Type of fastening: Screwing
Shielded buses: yes Mounting method shielding connection: Clamp
Type of connector: 2x RJ45 8(8) With label space: Yes
Flush mounted (plaster): yes Colour: White

MC CAT 6A Class EA Network Outlet Design Compatible Shielded


  • Description

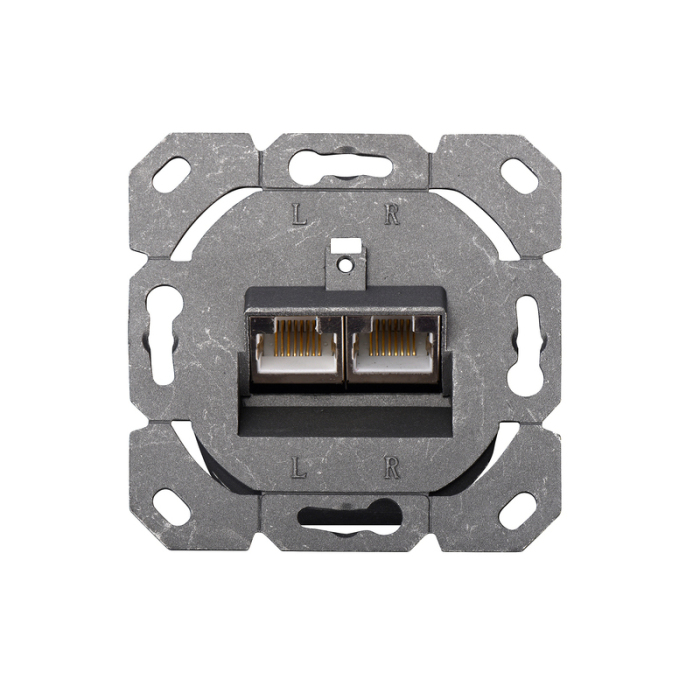

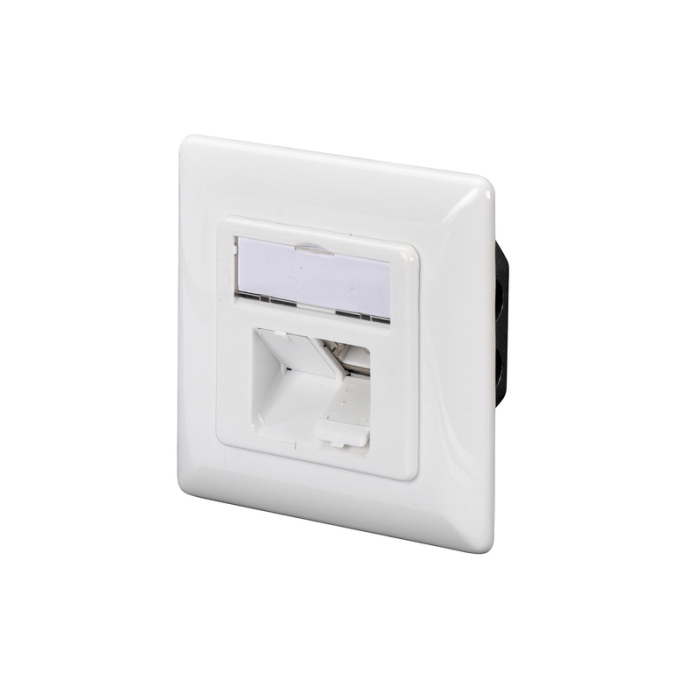

    CAT 6A Class EA network outlet, shielded 2x RJ45, LSA, pure white, flush mount, horizontal cable installation

    Future-oriented standards and high-end quality for your network.

    The CAT 6A network outlets are design compatible with common switch programmes. It is certificated to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and contains 2 shielded RJ45 sockets. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 A & B.

    Technical Details


  • Transmission property: Category 6A

  • Area of application: Up to 500 MHz, 10GBase-T

  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+

  • General properties:

  • Suitable for installation in trunking, surface and flush mount

  • RJ45 female, 8P8C

  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

  • Integrated strain relief for installation cables

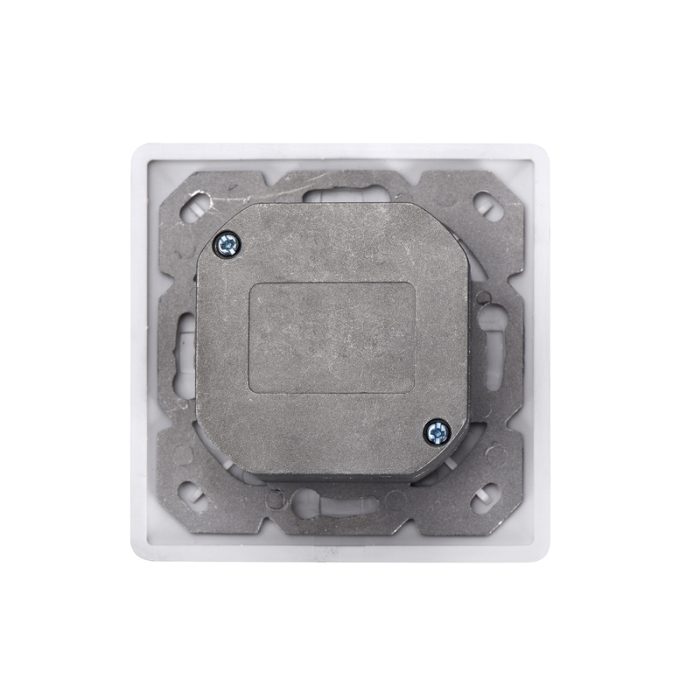

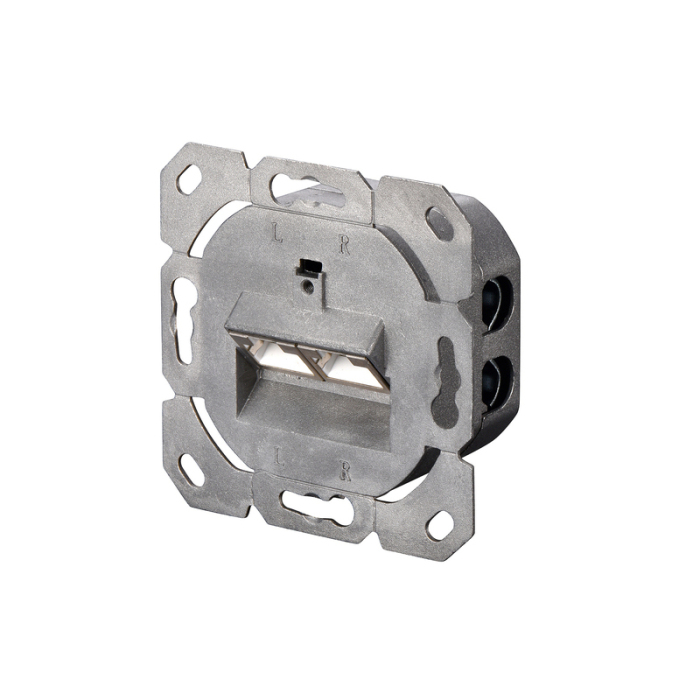

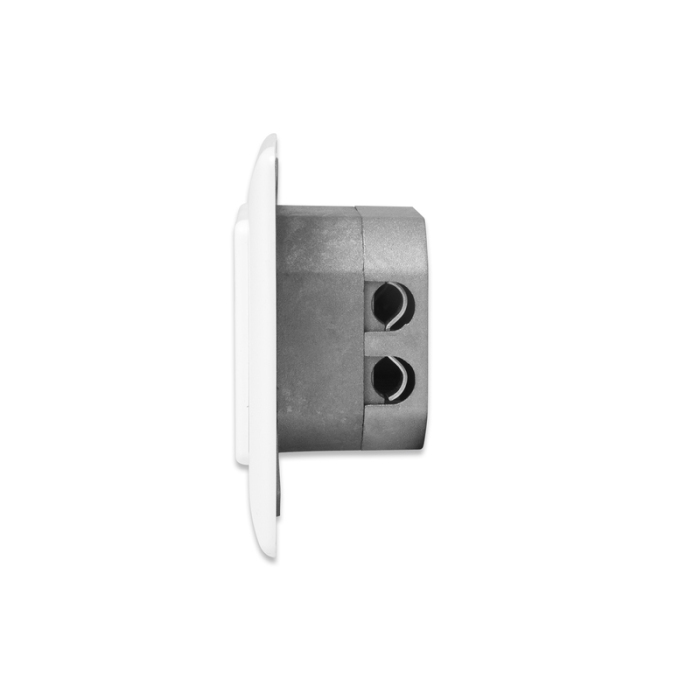

  • Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing

  • Strain relief 40°-angled female for patch cord

  • Central plate: 50 x 50 mm

  • Frame: 80 x 80 mm

  • Central plate with integrated dust covers

  • Design compatible to common switch ranges

  • Technical properties:

  • Housing material: Die-cast metal

  • RJ45 female material: ABS UL 94V-0

  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact

  • RJ45 shielding: Tinned bronze

  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

  • Conductor plate: FR4, UL 94V-0

  • Physical properties:

  • Insertion force: 30N max. (IEC 60603-7-5)

  • Retention strength: 7.7 kg between jack and plug

  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

  • IDC wire size: 22 – 26 AWG solid and stranded conductor

  • Insulation resistance: > 500 MOhm

  • Contact resistance: < 20 MilliOhm

  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

  • Not compatible with R&M freenet patch cords

  • Colour: White

  • RAL-number: 9003

  • Connection type: LSA

  • Outlet direction: Inclined

  • Centre plate: yes

  • Suitable for number of connectors: 2

  • Category: 6A (IEC)

  • Duct installation: no

  • Type of fastening: Screwing

  • Shielded buses: yes

  • Shielded housing: yes

  • Cover frame: yes

  • Separate strain relief: no

  • Mounting method shielding connection: Clamp

  • Separate earthing connection: no

  • Mechanical coding: no

  • Type of connector: 2x RJ45 8(8)

  • Floor box/sub-floor mounted: no

  • With label space: yes

  • Flush mounted (plaster): yes

  • Surface mounted: no

  • With dust cover: yes

  • Terminal resistor: no

  • Design suitable: yes

  • With buses/couplings: yes

  • Colour coding: yes


  • Logistics



    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton5011,2246,0035,5021,0034293,00
    Packaging Unit Inside10,226,008,508,50433,50
    Packaging Unit Single10,226,008,508,50433,50
    Net single without Packaging10,000,000,000,000,00

Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty
