|Place of Origin:||Zhejiang, China (Mainland)|
|Application:||Residential / General-Purpose|
|Type of fastening:||Screwing||Shielded buses:||yes|
|Mounting method shielding connection:||Clamp||Type of connector:||2x RJ45 8(8)|
|With label space:||Yes||Flush mounted (plaster):||yes|

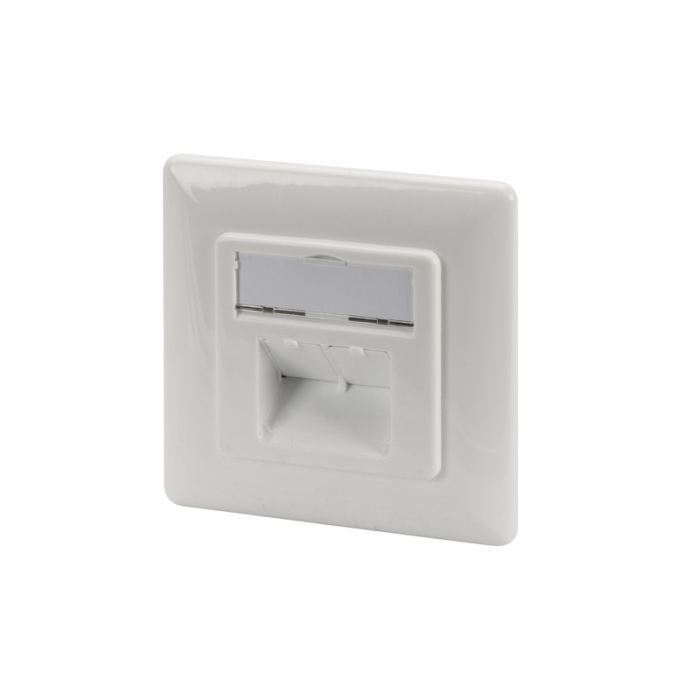

MC CAT 6A Class EA Network Outlet Design Compatible Shielded Flush Mount
CAT 6A Class EA network outlet, shielded 2x RJ45, LSA, pure white, flush mount, vertical cable installation
Future-oriented standards and high-end quality for your network.
The CAT 6A network outlets are design compatible with common switch programmes. It is certificated to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and contains 2 shielded RJ45 sockets. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 A & B.
Transmission property: Category 6A
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Suitable for installation in trunking, surface and flush mount
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Integrated strain relief for installation cables
Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
Strain relief 40°-angled female for patch cord

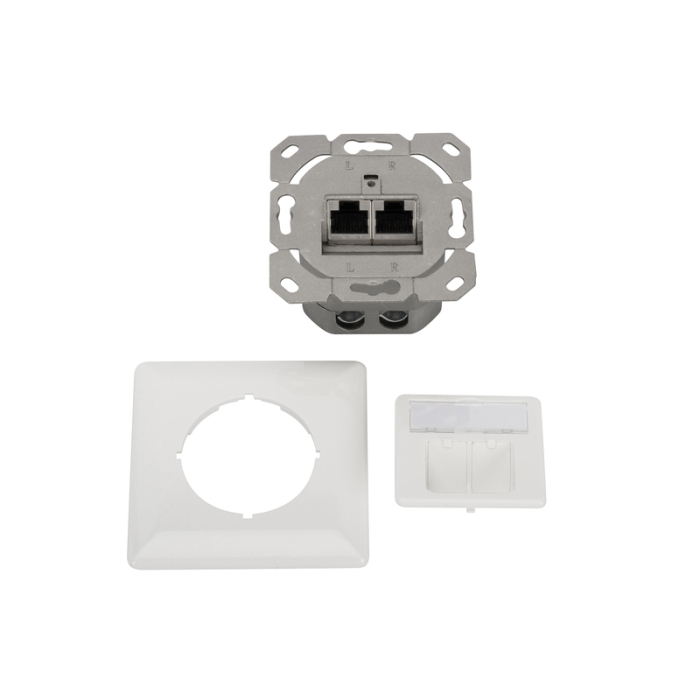

Central plate: 50 x 50 mm
Frame: 80 x 80 mm
Central plate with integrated dust covers
Design compatible to common switch ranges
Housing material: Die-cast metal
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Not compatible with R&M freenet patch cords
Connection type: LSA
Outlet direction: Inclined
Centre plate: yes
Suitable for number of connectors: 2
Category: 6A (IEC)
Duct installation: no
Type of fastening: Screwing
Shielded buses: yes
Shielded housing: yes
Cover frame: yes
Separate strain relief: no
Mounting method shielding connection: Clamp
Separate earthing connection: no
Mechanical coding: no
Type of connector: 2x RJ45 8(8)
Floor box/sub-floor mounted: no
With label space: yes
Flush mounted (plaster): yes
Surface mounted: no
With dust cover: yes
Terminal resistor: no
Design suitable: yes
With buses/couplings: yes
Colour coding: yes
|Packaging Unit Carton||50||11,14||45,50||35,50||21,00||33920,20|
|Packaging Unit Inside||1||0,22||6,00||8,50||8,50||433,50|
|Packaging Unit Single||1||0,22||6,00||8,50||8,50||433,50|
|Net single without Packaging||1||0,00||0,00||0,00||0,00||0,00|
