MC Desktop CAT 6A Class EA patch Panel Shielded Black Topseller Admin Edit

Model: PN004
Place of Origin: Zhejiang, China (Mainland)
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug
Category: CAT 6A

MC Desktop CAT 6A Class EA patch Panel Shielded Black Topseller


  • Description

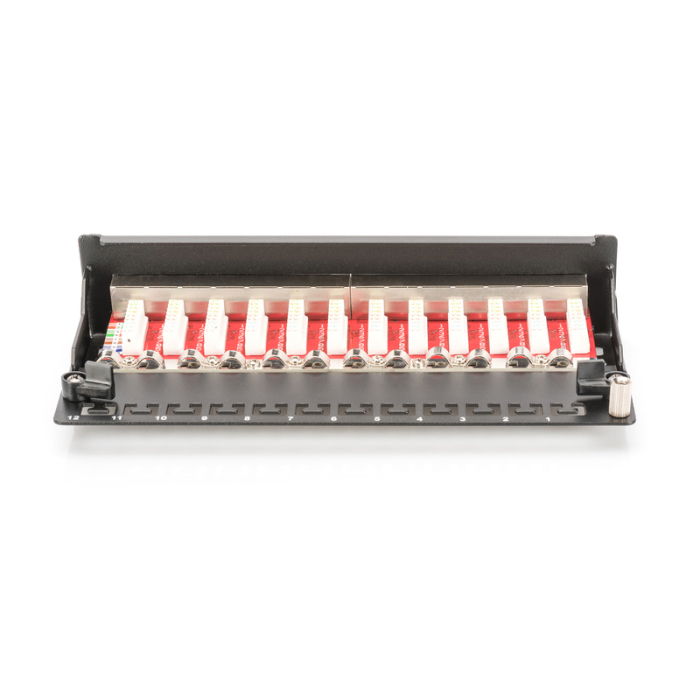

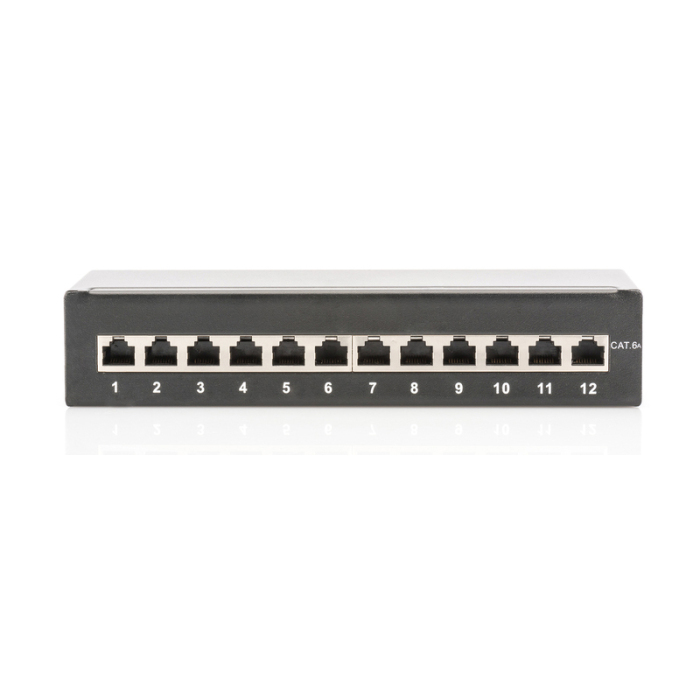

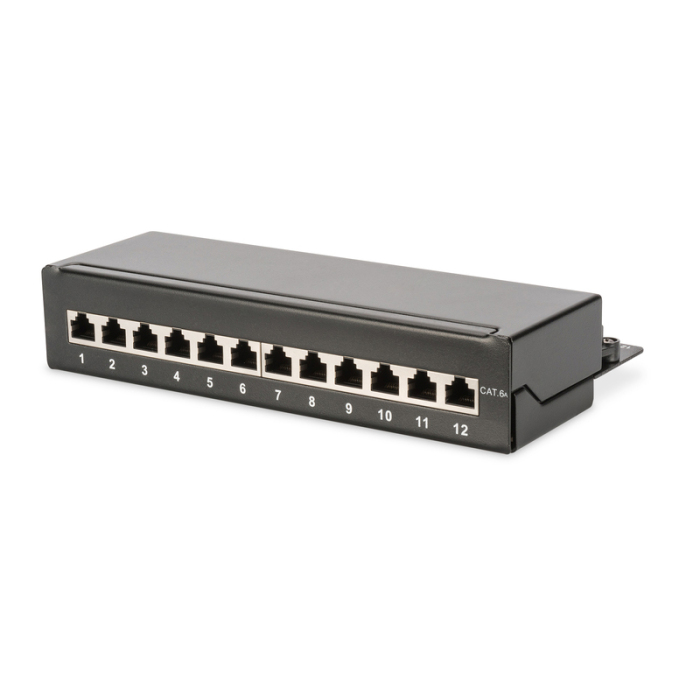

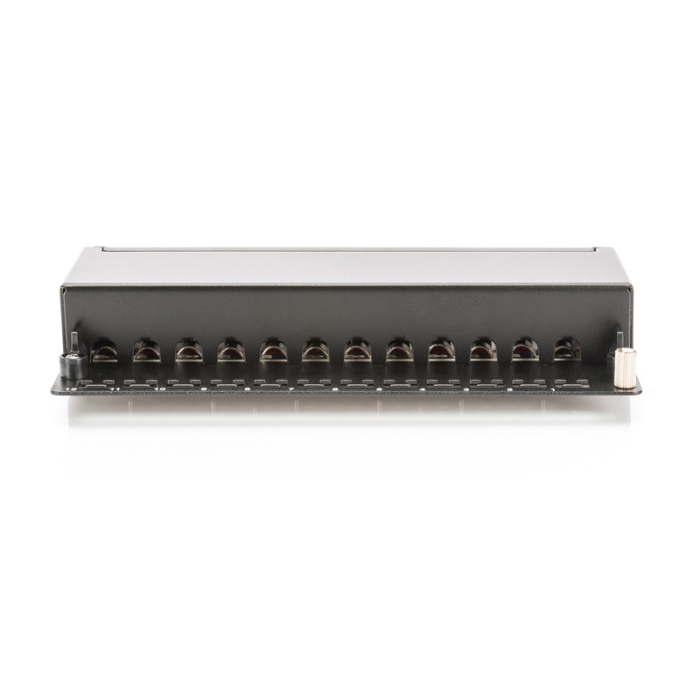

    Desktop CAT 6A Patch Panel, shielded Class EA, 12-port RJ45, 8P8C, LSA

    Applicable for SOHO solutions


  • CAT6A


  • The Desktop Patch Panels are the ideal solution for SoHo applications (Smart Office Home Office).The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances.

    Technical Details


  • Transmission properties: Category 6A, Class EA

  • Area of application: Up to 500 MHz, 10GBase-T

  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+

  • General properties:

  • Suitable for surface mount installation

  • RJ45 female, 8P8C

  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B

  • Cable fixing with smart cable ties

  • Central ground connection

  • 360° shield coverage

  • Mechanical properties:

  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110

  • RJ45 female material: ABS UL 94V-0

  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact

  • RJ45 shielding: Tinned bronze

  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze

  • Ground wire: Not included

  • Conductor plate: FR4, UL 94V-0

  • Physical properties:

  • Insertion force: 30N max. (IEC 60603-7-5)

  • Retention strength: 7.7 kg between jack and plug

  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5

  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

  • IDC wire size: 22 – 26 AWG solid and stranded conductor

  • Insulation resistance: > 500 MOhm

  • Contact resistance: < 20 MilliOhm

  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

  • Color: Black (RAL 9005)

  • Color: black, RAL 9005

  • Units: 1

  • Category: CAT 6A

  • Ports: 12


  • Package content


  • Desktop panel

  • Mounting instruction

  • Cable ties


  • Logistics



    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton1010,7059,0031,0020,0036580,00
    Packaging Unit Inside11,076,0017,5028,502992,50
    Packaging Unit Single11,076,0017,5028,502992,50
    Net single without Packaging10,000,000,000,000,00

Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty


FAQ

1. Can I print logo in the converter?

Yes , you can send us your logo by JPG or PDF file , we can free print logo.


2.Where can I use this product?

(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;

(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.


3.The box designer I can change it ?

Yes, you can send us your designe file , we will arrange production in china .

But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS


4. How can i get the sample ? free ?

We can send u the sample by air , but you need to pay the sample cost +shipping cost.
