Professional Cat.6A U/UTP installation cable LSZH Admin Edit

Model: LU010
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Stranding element: Pairs
Colour outer sheath: Blue
Category: 6A Conductor material: Cu, bare
Screen over stranding element: Foil Screen over stranding: Braiding
Material outer sheath: Polyolefin AWG-size: 23
Number of cores: 8

MC Professional Cat.6A U/UTP installation cable LSZH

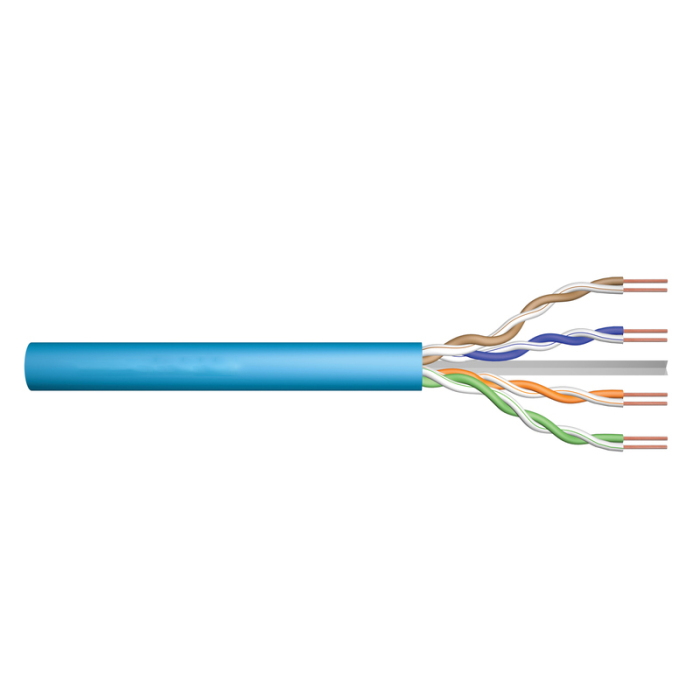

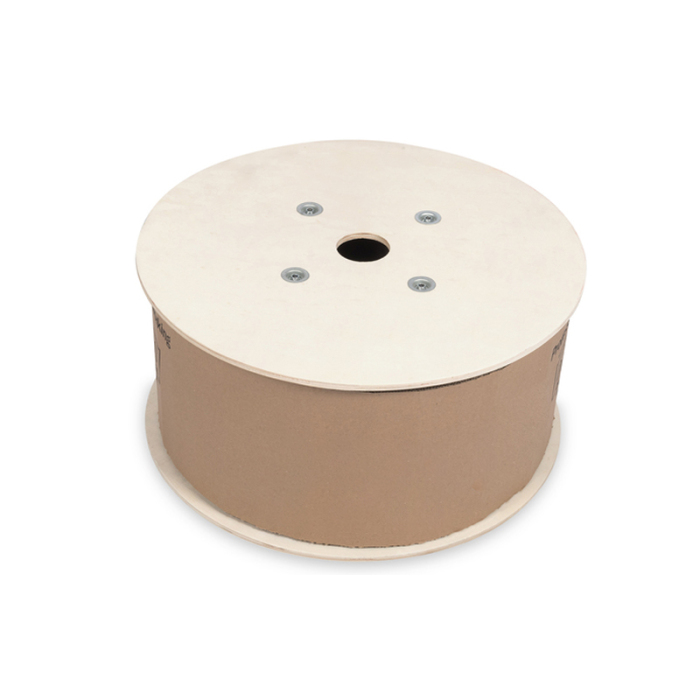

  • CAT 6A U-UTP installation cable, AWG 23/1, 305 m drum, simplex, color blue

    Future-oriented standards and high-end quality for your network.


  • 10GBit Ethernet

  • 500 MHz transmission frequency

  • PoE Power over Ethernet support

  • CPR class Eca


  • Cat.6A U/UTP Verlegekabel zeichnet sich durch folgenden Kabelaufbau aus 4x2x AWG23/1 und erreicht eine Übertragunsfrequenz von bis zu 500 MHz. Der halogenfrei Kabelmantel ist konform zu der Norm IEC 60332-1, FRNC-B, LSZH-1 und der BauPVO Euroklasse Eca. Das Kabel ist für die strukturierte Gebäudeverkabelung im sekundären und tertiären Bereich geeignet. Konform zu den Normen ISO/IEC 11801, DIN EN 50173, DIN EN 50288-11-1.

    Technical Details


  • Physical properties:

  • Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal

  • Insulation: HD-PE

  • Total number of insulated conductors: 8, twisted in 4 pairs

  • Color code: blue-white, orange-white, green-white, brown-white

  • Individual pair shield: None

  • Overall shielding: None

  • Outer jacket: Halogen-free (FRNC-B/LSZH-1)

  • Outer jacket diameter: 0.9 mm nominal

  • Color: Light blue (RAL 5012)

  • Mechanical properties:

  • Tensile loading: 150N max.

  • Dynamic bending radius: 8x AD mm min.

  • Static bending radius: 4x AD mm min.

  • Shipping- and storage temperature range: -20 °C up to +60 °C

  • Operating temperature range: -20 °C up to +75 °C

  • Installation temperature range: 0 °C up to +50 °C

  • Overall diameter: 7.0 mm nominal

  • Flame retardancy: IEC 60332-1

  • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034

  • Fire load: 295 Mj/km

  • Electrical properties:

  • Mean impedance: 100±5Ohm at 1MHz - 600MHz

  • Capacitance: 40 pF/m nominal @ 1 KHz

  • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz

  • Insulation resistance: 5 GOhm x km min.

  • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)

  • Voltage resistance: 72 Vdc max.

  • Coupling attenuation: 65 dB

  • Signal propagation delay: 450 nS/100 m max.

  • Propagation delay: 15 nS/100 m max.

  • Separating class: "c" acc. to EN 50174-2

  • NVP: 70%

  • Assortment: Twisted Pair Installation Cables

  • Length: 305 m

  • Category: CAT 6A

  • Color: light-blue

  • Jacket: LSOH

  • Shielding: U-UTP, unshielded

  • Structure: 4 x 2 AWG 23/1, solid twisted pair


  • Logistics



    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton117,0039,0039,0027,0041067,00
    Packaging Unit Inside117,0039,0039,0027,0041067,00
    Packaging Unit Single117,0039,0039,0027,0041067,00
    Net single without Packaging10,000,000,000,000,00

Our advantages:

  1. CE and RoHS certification

  2. ISO9001 passed

  3. FDA certification

  4. OEM and ODM are accepted

  5. Factory price and good customer service

  6. Patent product.


Our Services:

1. OEM or ODM

2. Factory Price

3. High-end Desigh Package. Our own designer can help you design the packaging for free.

4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)

5. 100% QC inspection before shippment

6. Full Refund or Replacement for Quality Faulty

7. One Year Warranty


FAQ

1. Can I print logo in the converter?

Yes , you can send us your logo by JPG or PDF file , we can free print logo.


2.Where can I use this product?

(1) Laptop Brand: Huawei, Xiaomi, Dell, Lenovo, Asus, Hewlett-Packard, Apple, etc. ty branch p holding e-c3 Association. 1 type-to-c notebook;

(2) Mobile Brand: Huawei, Samsung, oppo and other types of mobile phones that support the type-c3 association.


3.The box designer I can change it ?

Yes, you can send us your designe file , we will arrange production in china .

But need to open mould (Plate making fee + machine fee) , MOQ 3000PCS


4. How can i get the sample ? free ?

We can send u the sample by air , but you need to pay the sample cost +shipping cost.
