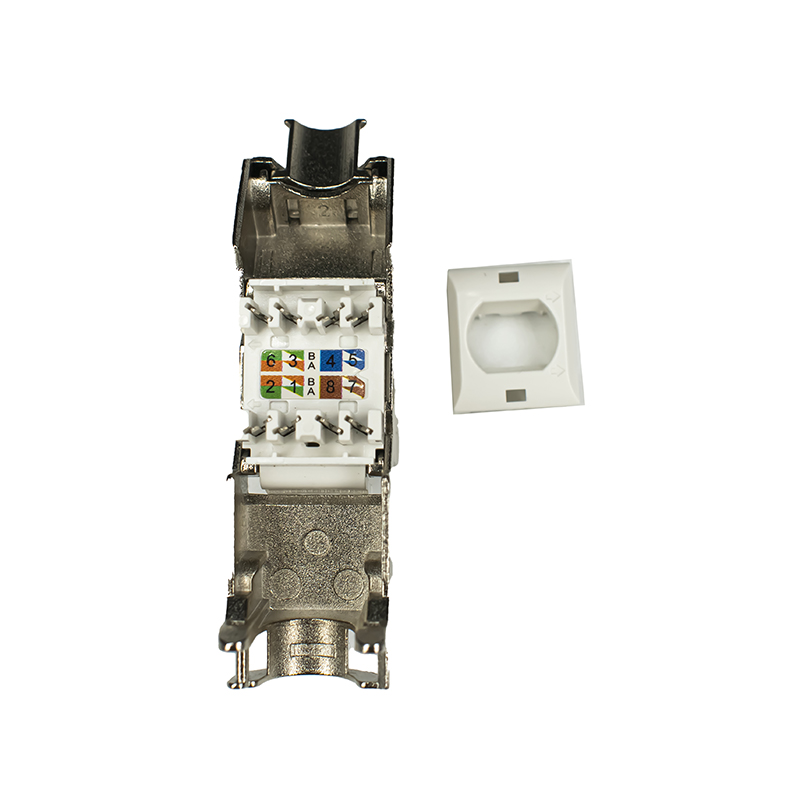

Slim CAT6A Keystone Jack, Shielded, Tool Free
P/N: MCKSJS6A-Ss
A shielded CAT6A Keystone Module with tool free installation which provides best performance and link quality for your network.
Features: Slim 14.5mm width design
Certificate: GHMT certified
Color: Sliver
RoHS compliant
Suit for cable :22AWG~24AWG
Electrical:
Contact resistance:20mΩ
Insulation resistance: ≤500MΩ @100 V DC
Withstand voltage: DC1000V RMS 60Hz/min.
Permanent link:ANSI/TIA 568C CAT6A ISO 11801 PL Class E 90m/20m
Storage temperature:: -40℃/ +70℃
Operation temperature:: -10℃/ +60℃
Mechanical:
Contact coating: Nickel, gold-plated 6U
Terminal PINs: phosphor bronze, nickel plated
RJ45 contact life: 750 times/min.
IDC terminal life: 250 times/min.
Packaging: 1pc/PE Bag
MOQ:1k pcs
